t-Joy IP
Laiatech

  • t-Joy IP Broadcaster

    TP

    IP Camera Controller with Joystick

    Product Sheet
    Contact Sales

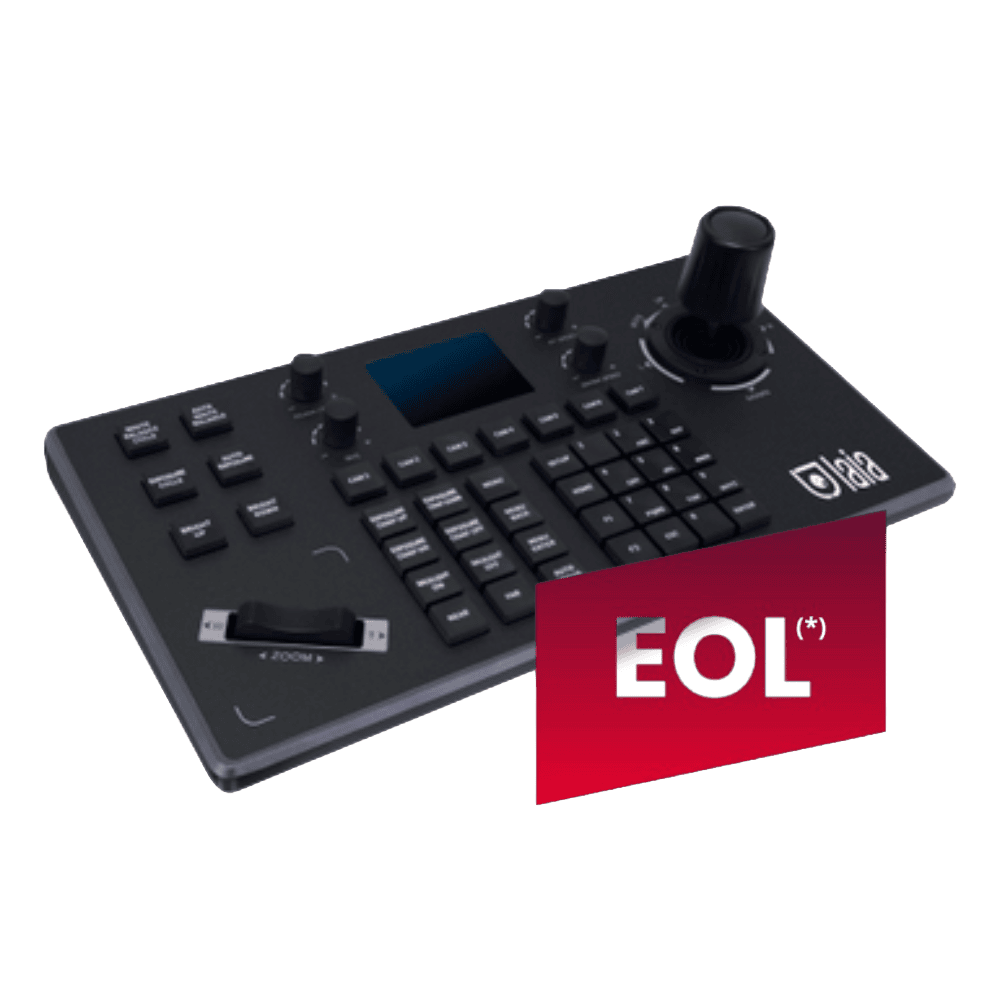

    (*) Each generation gives way to the next. After a proven track record in professional settings, the t-Joy IP has reached the end of its life cycle. Discover the new t-Joy View (coming soon).

Professional realization

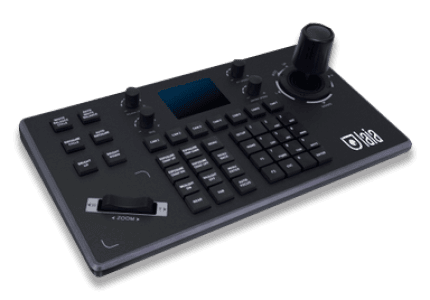

Laia T-Joy IP (PN: TJIP) is the perfect IP camera controller for your conference rooms, auditoriums, or churches where production quality is paramount. Plus, thanks to its 4D joystick, you can control the viewing angle of your cameras.

Supports network and 2 analog control modes. Independent IP addresses in network mode

Supports VISCA, VISCA over IP, ONVIF, PELCO-P, PELCO-D, and NDI® protocols

Software function control support for conference cameras

Camera control by 4D joystick with variable speed. Omnidirectional movements

Supports up to 7 camera shortcut control buttons for quick and easy operation

Control terminal for any collaborative environment

IP controller with Joystick, valid for any camera with VISCA protocol over IP. PTZ control with speed, focus, Zoom, etc. adjustments.

Main features

✓ Supports the network control model and has a unique IP address.

Compatible with ONVIF, VISCA, and VISCA protocol

✓ Control of the conference camera software function, the central control.

✓ With the 4D joystick you can control the camera up/down, left/right, Zoom, ... etc.

✓ Zoom functionality button

✓ Supports the "Back Light Compensation" function of connected cameras. They are activated/deactivated independently.

Supports configuration from the t-Joy IP or via web access through Internet Explorer.


Unleash your creativity

Enjoy the multiple options and advanced features of our control terminal. The perfect solution for any camera with VISCA over IP protocol from any location such as an event room, a church, an auditorium...

Technical characteristics

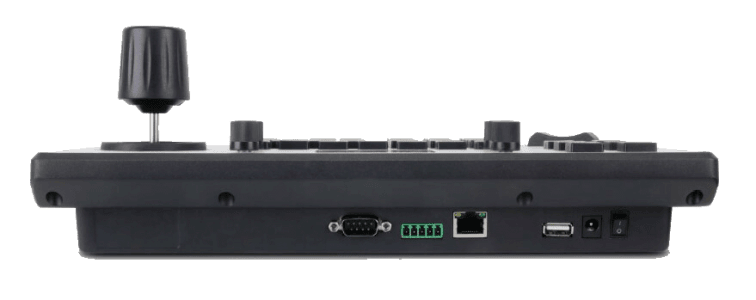

Interface RS422, RS232, IP RJ45, USB2.0

✓ Power Supply DC12V-2A

VISCA, ONVIF2.4 protocol.

✓ Working temperature 0ºC~55ºC / 14°F~131°F

✓ LCD display method

✓ 4D Joystick

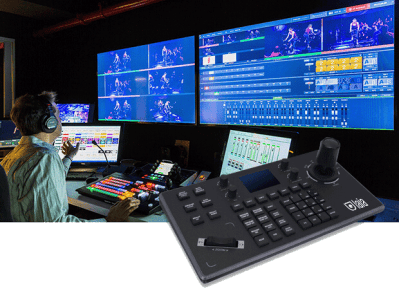

The choice for conference rooms

Laia Broadcaster IP (PN: TJIP) is the perfect addition to your event/conference room recording equipment. Thanks to its 4D joystick, you can capture whatever you need with your cameras, moving their field of view in four dimensions (length, width, depth, and time).

Professional Support Warranty 2 years

The B-Hybrid camera range offers a free 2-year Professional Support warranty with 6-hour service for incidents, replacement in less than 10 days from receipt and support via help desk.

Learn More

Related products

 Broadcaster Pro 25x 3G

Broadcaster Pro 25x Fiber

C-Pro Infinity 20x

Specifications

Features

Operating system: Linux
Protocol: VISCA, VISCA over IP, Onvif, PELCO-P, PELCO-D
Interface: RS422, RS232, RJ45
Warning tone: Activate / deactivate beep when touching keys
LCD display: TFT LCD 320*240
Power consumption: ≤5W
Power Supply: DC12V-2A
Working temperature: -10~55°C / 14°F~131°F
Storage temperature: -10°C ~60°C / 14°F~140°F
Dimension: 321.6mm X 179.2mm X 105.7mm
Weight: 1290g
